RCF hdl 38-as 100-240v active flyable subwoofer module

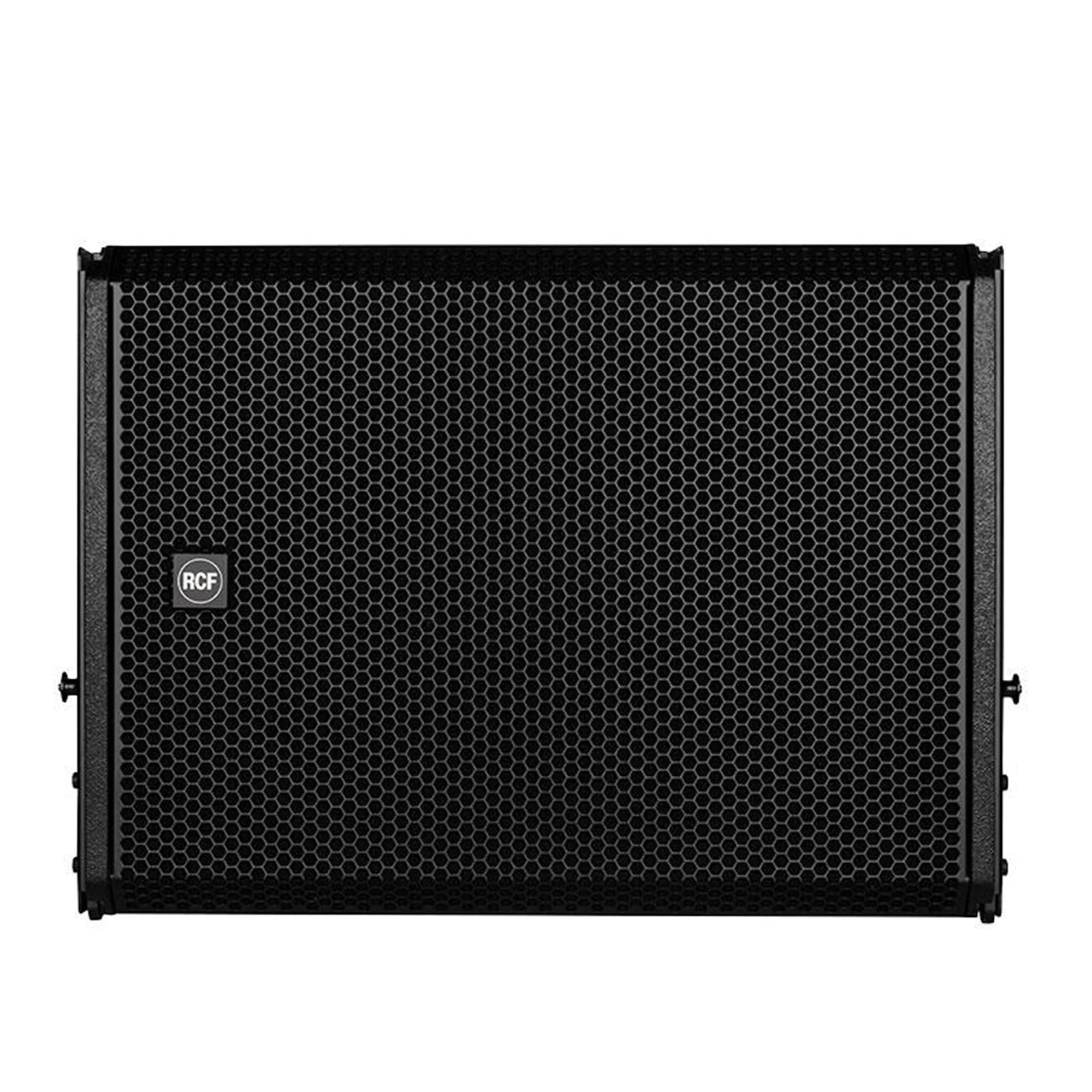

Product image 1

RCF hdl 38-as 100-240v active flyable subwoofer module

FEATURES
  • 136 dB Max SPL
  • 3200W peak class-D Amplifier
  • 30-140 Hz frequency response
  • RDNet Networked Management
  • 1x18โ€ Neodymium Woofer, 4.0โ€ voice coil

The HDL 38-AS is the ideal flyable bass complement for the HDL 30-A array system. It features one 4.0โ€ voice coil, 18โ€ Neodymium woofer to handle 136 dB SPL Max from 30 Hz to 140 Hz with the maximum linearity and low distortion. The HDL 38-AS is perfect to create flown systems for theatrical and indoor requirements. The built-in 3200W class-D amplifier delivers excellent playback clarity and up to 136 decibels SPL max. Due to its compatibility with RDNet - remote monitoring and control, the HDL 38-AS is part of the professional HDL System.

Frequency Response:
30 Hz รท 140 Hz
Max SPL @ 1m:
136 dB
Woofer:
18'' neo, 4.0'' v.c
Input signal:
bal/unbal
Input connectors:
XLR, RDNet Ethercon
Output connectors:
XLR, RDNet Ethercon
Input sensitivity:
+4 dBu
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Volume, Preset selection
RDNet:
Yes
Total Power:
3200 W Peak, 1600 W RMS
Low frequencies:
3200 W Peak, 1600 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Cabinet/Case Material:
Baltic birch plywood
Hardware:
Array fittings
1 X M20
Handles:
2 Side
Grille:
Steel
Color:
Black, White - RAL 9003
Height:
502 mm / 19.76 inches
Width:
700 mm / 27.56 inches
Depth:
621 mm / 24.45 inches
Weight:
48.7 kg / 107.36 lbs
FEATURES
  • 136 dB Max SPL
  • 3200W peak class-D Amplifier
  • 30-140 Hz frequency response
  • RDNet Networked Management
  • 1x18โ€ Neodymium Woofer, 4.0โ€ voice coil

The HDL 38-AS is the ideal flyable bass complement for the HDL 30-A array system. It features one 4.0โ€ voice coil, 18โ€ Neodymium woofer to handle 136 dB SPL Max from 30 Hz to 140 Hz with the maximum linearity and low distortion. The HDL 38-AS is perfect to create flown systems for theatrical and indoor requirements. The built-in 3200W class-D amplifier delivers excellent playback clarity and up to 136 decibels SPL max. Due to its compatibility with RDNet - remote monitoring and control, the HDL 38-AS is part of the professional HDL System.

Frequency Response:
30 Hz รท 140 Hz
Max SPL @ 1m:
136 dB
Woofer:
18'' neo, 4.0'' v.c
Input signal:
bal/unbal
Input connectors:
XLR, RDNet Ethercon
Output connectors:
XLR, RDNet Ethercon
Input sensitivity:
+4 dBu
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Volume, Preset selection
RDNet:
Yes
Total Power:
3200 W Peak, 1600 W RMS
Low frequencies:
3200 W Peak, 1600 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Cabinet/Case Material:
Baltic birch plywood
Hardware:
Array fittings
1 X M20
Handles:
2 Side
Grille:
Steel
Color:
Black, White - RAL 9003
Height:
502 mm / 19.76 inches
Width:
700 mm / 27.56 inches
Depth:
621 mm / 24.45 inches
Weight:
48.7 kg / 107.36 lbs
