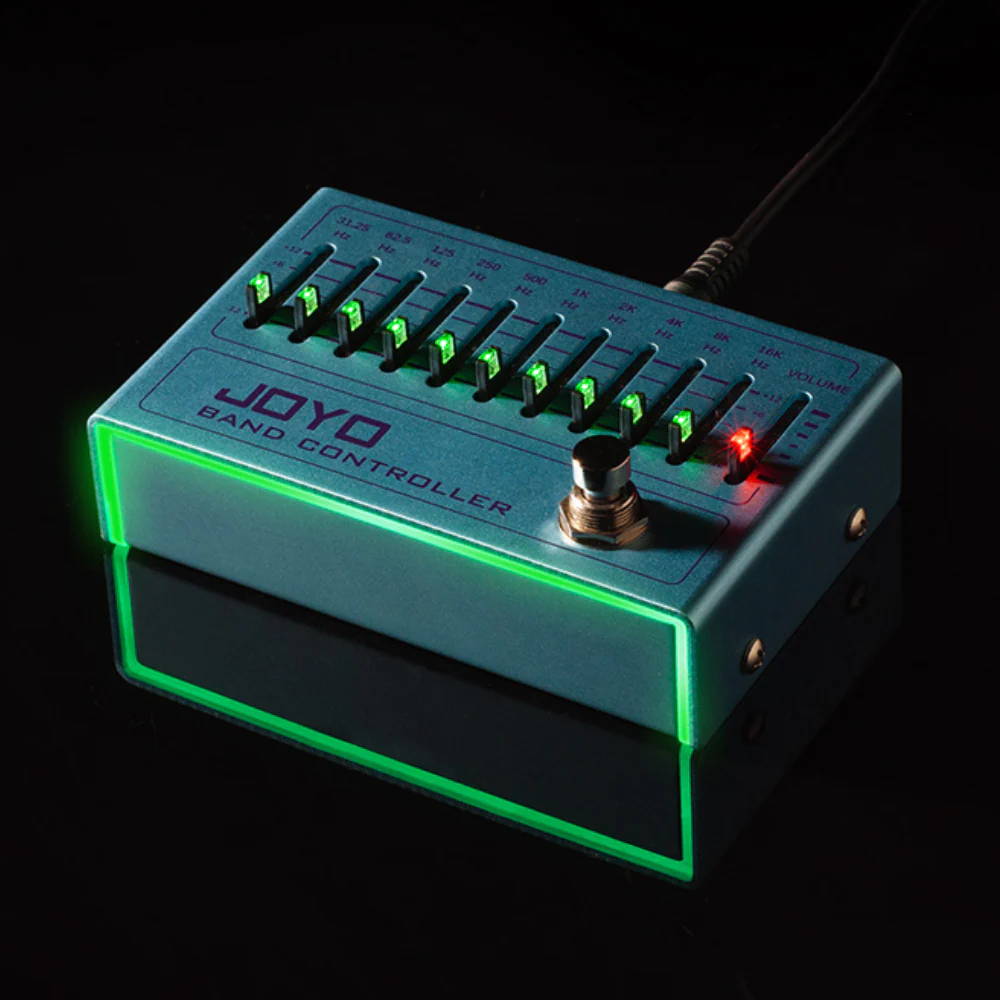

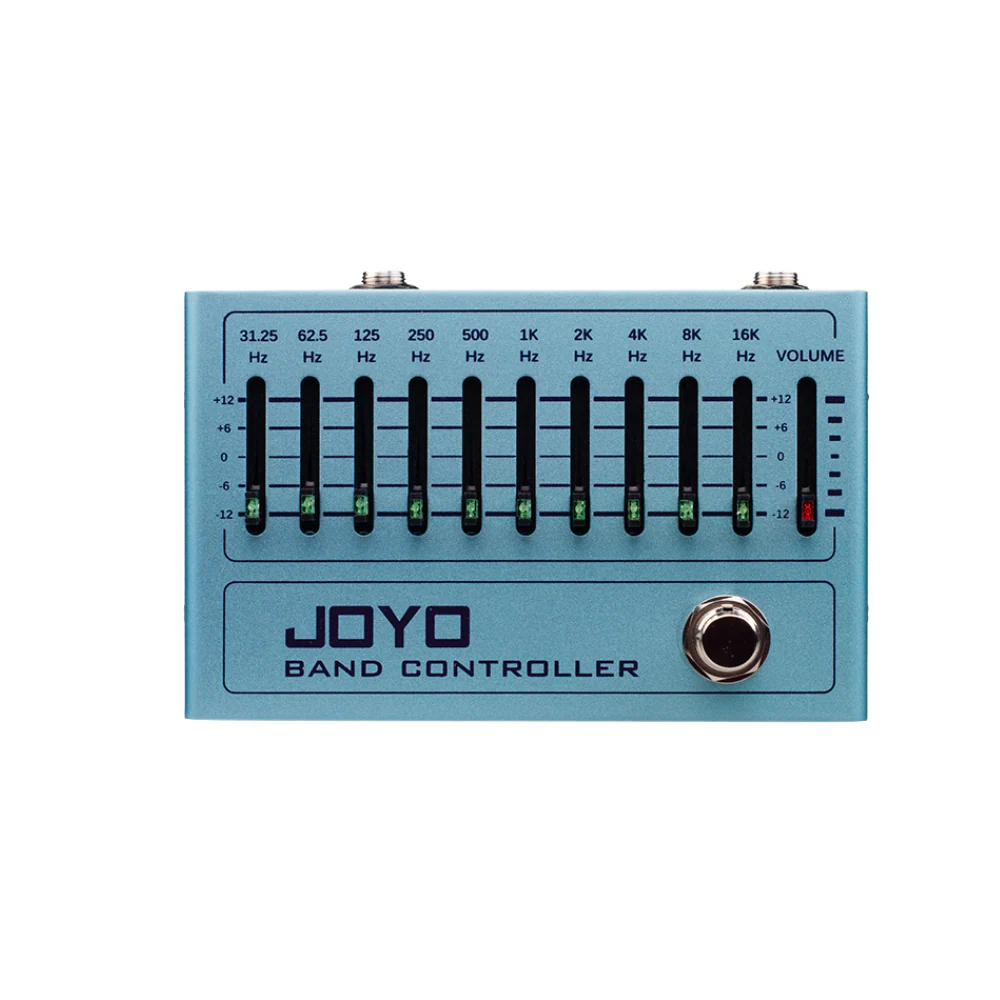

JOYO R-12 Band Controller 10-Band EQ Pedal
JOYO R-12 Band Controller 10-Band EQ Pedal
The JOYO R-12 Band Controller is a versatile 10-band graphic equalizer designed for both guitar and bass players. Covering a frequency range from 31.25Hz to 16kHz, it accommodates various instruments, including 4-string and 5-string basses, as well as 6-string and 7-string guitars. This pedal allows precise tonal shaping, enabling musicians to enhance their sound across different genres and playing styles.
Key Features:
- Wide Frequency Range: 10-band EQ covering frequencies from 31.25Hz to 16kHz, suitable for standard and extended-range instruments.
- Independent Volume Control: Features a dedicated volume control knob for overall output level adjustment.
- LED-Illuminated Sliders: Each frequency band slider is illuminated, providing clear visibility in low-light environments.
- True Bypass Design: Ensures minimal tone loss when the pedal is disengaged.
- Durable Construction: Housed in a sturdy aluminum alloy casing for enhanced durability.
Specifications:
| Frequency Bands | 31.25Hz, 62.5Hz, 125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz, 16kHz |
| Input Impedance | 1MΩ |
| Output Impedance | 100Ω |
| Current Consumption | 30mA |
| Power Supply | DC 9V (center minus) |
| Bypass Type | True Bypass |
| Dimensions | 125mm (L) × 78.5mm (W) × 48mm (H) |
| Weight | 316g |
